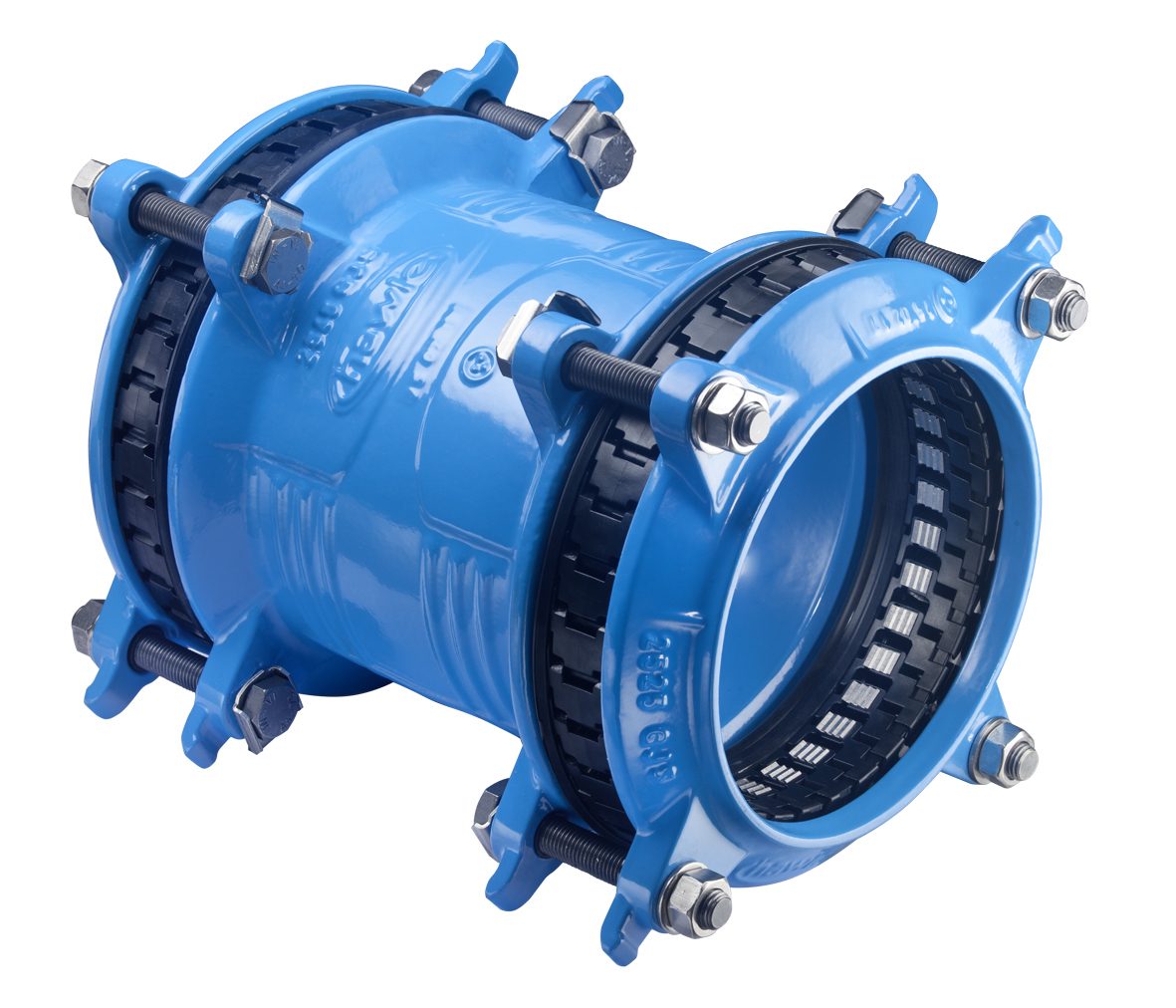

Hawle Synoflex Couplings

Hawle Synoflex Couplings

Restraint multi-range connection for all kinds of pipes. The Hawle Synoflex socket system is suitable for the restraint connection of all kinds of pipes generally used in the water industries. By means of the patented Hawle Synoflex you can establish corrosion-protected and high-quality connections of the most various kinds of pipes (AC, DCI, PE, PVC, steel).

Available in sizes DN50 – 300.

Synoflex
Couplings Stepped Couplings Flange Adaptors Stepped Flange Adaptors End Caps Duckfoot Bend
50 (56-71) 80 x 65 (65-105) x (71-88) 50 (56-71) Flange 80 – Socket 65 80 (85-105) 80 (85-105)
65 (71-88) 100 x 80 (104-132) x (85-105) 65 (71-88) Flange 80 – Socket 100 100 (104-132) 100 (104-132)
80 (85-105) 150 x 100 (155-192) x (104-132) 80 (85-105) Flange 100 – Socket 80 150 (155-192)
100 (104-132) 100 (104-132) Flange 100 – Socket 125
125 (131-160) 125 (131-160) Flange 150 – Socket 125
150 (155-192) 150 (155-160)
200 (198-230) 200 (198-230)
225 (230-260) 250 (265-310)
250 (265-310) 300 (313-356)
300 (313-356)
